Picture this: a warm exchanger whose interior networks are thinner than a human hair. A rocket combustion chamber with regenerative cooling circuits so complex they might never ever be machined. These are the kind of parts that steel additive production and laser powder bed combination (LPBF) particularly, implement. They are additionally the components that are hardest to depowder.
In aerospace, residual powder inside a cooling channel is a certification danger. In serial manufacturing, an undepowderable geometry discovered after publishing means rework, postpone, and price.
Solukon’s automated depowdering systems were built on a conviction: that automated depowdering ought to not be a mechanical task however a smart one. A depowdering maker without the right software application is power without accuracy: the equipment can relocate, however it can not analyze the geometry. SPR-Pathfinder ® has always been the intelligence behind the movement.
But as components come to be a lot more complicated, the demands on that particular intelligence grow with them. SPR-Pathfinder ® PRO has been developed to resolve the critical unknowns that complexity develops.
Why SPR-Pathfinder ® PRO was developed
As LPBF geometries end up being significantly intricate, depowderability is emerging as a limiting factor for commercial adoption. Parts only produce value when powder can be eliminated reliably and repeatably. SPR-Pathfinder ® PRO was developed to eliminate this obstacle. In straight feedback to market need the Solukon group around Item Proprietor Hemank Raj has actually serviced the big software application upgrade for the complying with factors:
- Particular LPBF parts have gone beyond all existing intricacy limitations and as a result the ceiling of the standard SPR-Pathfinder ® version
Geometries like ultra-complex thermal monitoring components and multi-channel aerospace frameworks need a very large simulation resolution to ensure automatic depowdering accuracy. Mentioning variety of voxels to imitate the perfect depowdering course the previous limit of 2 4 million voxels has actually been gotten rid of. - AM market reveals the demand for complete procedure openness
In steel additive production, the demand for information openness is particularly high since components are intricate, quality requirements are stringent, and every construct is a chain of synergistic actions. If you can not clearly map what occurred when (criteria, equipment state, postprocessing actions), it becomes difficult variances, confirm repeatability, or meet consumer and certification expectations. That’s specifically why Solukon’s Digital-Factory-Tool issues: it tape-records all pertinent depowdering procedure data and allows maximum transparency, with the option to integrate this details into a higher-level digital control panel through OPC UA. And with the additional abilities of SPR-Pathfinder ® PRO, Solukon takes the next step. - One of Solukon’s total primary goals: Enabling an enhanced “Layout for Depowdering” process
Several manufacturers have actually understood the worth of Style for Additive Manufacturing (DfAM), optimizing a part’s geometry to make sure that it can actually be printed. Fewer have actually applied the exact same thinking to what occurs after printing. Designing for depowdering implies considering, from the earliest layout stage, whether powder can dependably leave the part’s internal structures and changing the geometry appropriately prior to a single layer is published. The payback is practical: less models and shocks after printing, more predictable lead times, and a clearer path to repeatable, documentable postprocessing, especially for intricate inner networks where depowdering demands increase with part intricacy. In short words: Layout for Additive manufacturing makes sure a component can be printed whereas Desing for Depowdering guarantees the component can be industrialized.
By making depowderability a foreseeable engineering parameter, Solukon makes it possible for makers to confirm complex designs before manufacturing beginnings. Andreas Hartmann, chief executive officer and CTO sums up why Solukon has actually chosen to work with a making up upgrade of SPR-Pathfinder ®:”At Solukon, we have always believed that trusted and smart automatic depowdering can be accomplished when maker, procedure, and software are lined up. The parts our consumers print today are a lot more intricate than ever and we have actually expanded together with that aspiration. SPR-Pathfinder ® PRO mirrors years of listening to the market and progressing our software application symphonious with one of the most requiring AM applications: get rid of sub-millimeter networks, densely stuffed interior surfaces, and geometries previously unattainable.”
What is new in SPR-Pathfinder ® PRO
The PRO variation introduces three capacities that surpass the existing software:
Greater simulation resolution

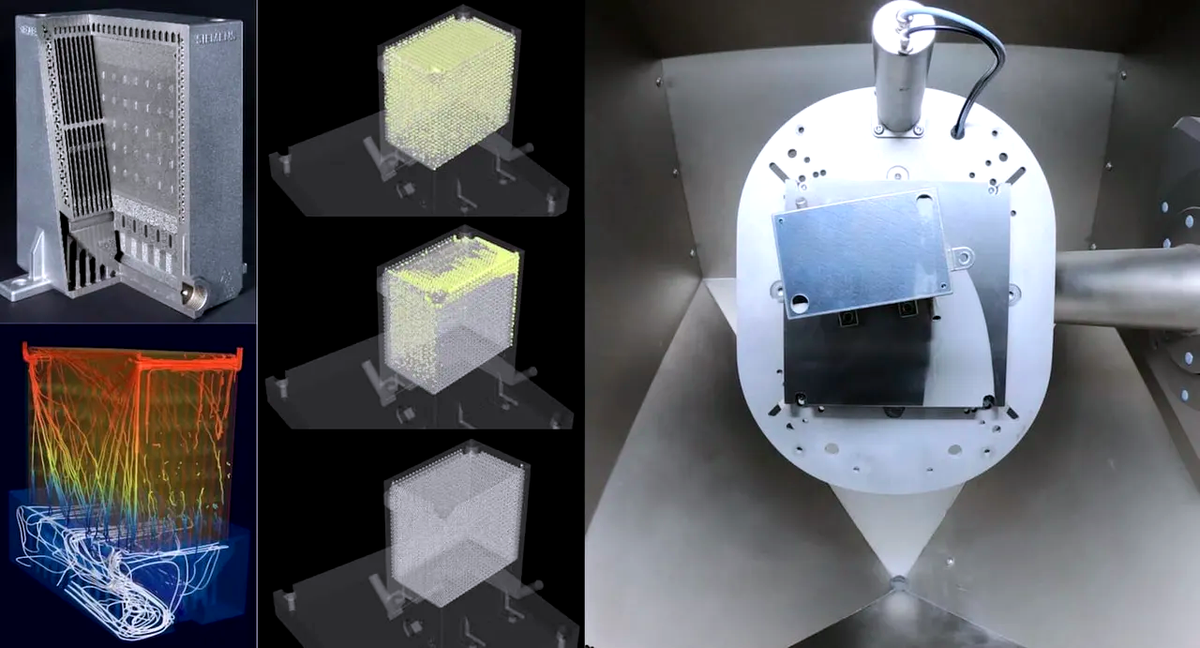

SPR-Pathfinder ® PRO supports as much as 1, 000, 000 bits, a 20 -fold rise over the common variation, incorporated with a limitless number of voxels. This makes it feasible to properly calculate also one of the most complex internal structures, including sub-millimeter networks and largely jam-packed interior surfaces that were formerly inaccessible to simulation. In the simulation by SPR-Pathfinder ® PRO, the component relocates similarly it will later on throughout the corresponding cleaning step in the Solukon machine. This makes the procedure much easier to comprehend.
Cross-sectional examination in all planes
The software application currently makes it possible for cross-sectional sights of the component in all airplanes (X, Y, and Z), giving operators complete exposure inside the component at any point and from any kind of direction. Additionally, the part’s transparency can be changed very granularly. This makes it simple to identify powder catches and traffic jams prior to a solitary layer is published.
Accurate process-time forecast
For many commercial drivers, depowdering continues to be an unknown variable in production scheduling. SPR-Pathfinder ® PRO currently permits individuals to define precisely the length of time the calculation and depowdering procedure in their Solukon system will take and to figure out how that time suits their production timetable. This eliminates a traffic jam that expands much more costly as manufacturing volumes increase.
“SPR-Pathfinder ® PRO is the outcome of working very closely with drivers who push LPBF to its limits each day,”, claims Hemank Raj, Item Proprietor of SPR-Pathfinder ®, including: “The typical version already removes the guesswork from depowdering program development. With PRO, we go even more: individuals can currently look inside one of the most intricate geometries, anticipate process time with self-confidence, and validate depowderability before the initial layer is published. That changes just how designers consider postprocessing from the extremely start of a project.”
SPR-Pathfinder ® Standard vs PRO at a glimpse
With the intro of SPR-Pathfinder ® PRO, Solukon now provides the software application in 2 versions, each created for details applications and production requirements.
As a whole, the SPR-Pathfinder ® software uses the CAD file of the full construct job to determine the ideal activity series for getting rid of powder from intricate interior frameworks as quickly as possible. estimations are based upon the digital double of the component.
Each version is compatible with the adhering to Solukon depowdering systems:
• SFM-AT 350
• SFM-AT 350 -E
• SFM-AT 800 -S
• SFM-AT 1000 -S
• SFM-AT 1500 -S
SPR-Pathfinder ® Basic assists to compute cleaning programs for reasonably complex components. It offers the core automation that makes hand-operated shows unneeded. For individuals whose parts do not call for sophisticated simulation and desire an economical entry-level depowdering software application Basic is the right device.
SPR-Pathfinder ® PRO is made for very intricate parts and for operations where process openness and manufacturing planning accuracy are non-negotiable. It delivers complete simulation deepness, cross-sectional evaluation ability, and precise process-time forecast.
